FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management

Name: FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management
Brand: GAPHO
Price: 1 USD

China FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management wholesale

Brand Name : GAPHO

Model Number : 1×8 rack-mounted optical switch

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

Monitoring Port : RJ45, RS232

Product Name : 1×8 rack-mounted optical switch

Insertion Loss1,2 : Typ:1 0 Max:1.2

Wavelength Range : 850±40 / 1300±40 ，1260-1650

Test Wavelength : 850 /1300 1310/1550

Return Loss1,2 : SM≥45 MM≥ 30

Chassis Type : 1U L482.6xW200xH44

Relative Humidity : 5%-95%

Switching Time : ≤10ms(sequence switch time of adjacent channel)

Contact Now

1X8&1x32 Rack mount Optical Switch,FITL/Automatic Measurement with RS232 Control and RJ45 Ethernet Remote Management

Description:

1×8 rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Features:

Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability
LED display panel. Visual display, Convenient operation
Transparent transmission signal. High stability and reliability
Channel and time interval of automatic scanning can be set up
RS232 Control and RJ45 Ethernet Remote Management

Application:

FITL
Cable Monitoring and Maintaining system
Automatic Measurement
Optical Network Remote Monitoring

Specifications:

Parameters	Unit	SUN-FSW-1N-1U (SUN-FSW-1N-1U (NS8) NS8)
Insertion Loss1,2	dB	Typ:1 0 Max:1.2
Wavelength Range	nm	850±40 / 1300±40	1260-1650
Test Wavelength	nm	850 /1300	1310/1550
Return Loss1,2	dB	SM≥45 MM≥ 30
Crosstalk 1	dB	≥55
PDL	dB	≤0.1
WDL	dB	≤0.25
Repeatability	dB	≤ ±0.05
Durability		≥10 Million
Optical Power	mW	≤500
Switching Time	ms	≤10 (sequence switch time of adjacent channel)
Operati ng	r	-60
Storage Temperature	r	-120
Relative Humidity	%	5-95
Monitoring Port		RJ45, RS232
Power Supply	V	AC: 100-240V (50/60Hz ) or DC: 36〜72V
Chassis Type	mm	1U L482.6xW200xH44

Ordering Information:

Channel

Fiber Type

Test Wavelength

Power Supply Mode

Connector

Chassis Type

≤8

SM: SM, 9/125 M5: MM, 50/125

M6: MM, 62.5/125

X: Others

850: 850nm 1310:1310nm 1550:1550nm 1310/1550:1310/15 50nm

X:Others

AC: 100-240V

DC: 36-72V

AC/ DC: 100-240V/ 36-72V

AC/AC: Dual 100-240V

DC/DC: Dual 36*72V

X: Others

FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC X: Others

1U: L482.6*W200 xH44

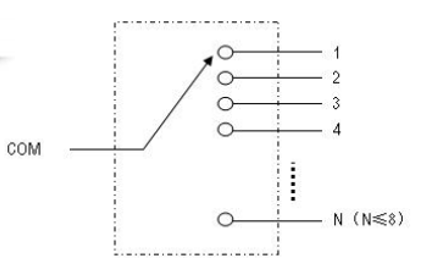

Optical Route:

FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management

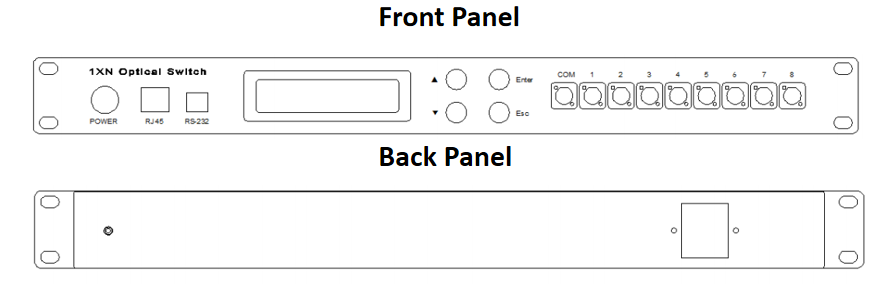

Panel to Show:

FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management

Power: Master switch of power supply
RJ45:Communications network management interface ;
RS-232: Rs- serial interface ; RS232 serial communication interface;
LCD:Devices that display information directly;
▲: Key to move up; ▼: Key to move down;
Enter: Key to determine;
Esc: Key to cancel;
com,1~8:Fiber interface;

FITL Rack Mount 1x32 Fiber Optical Switch With RJ45 Ethernet Remote Management
