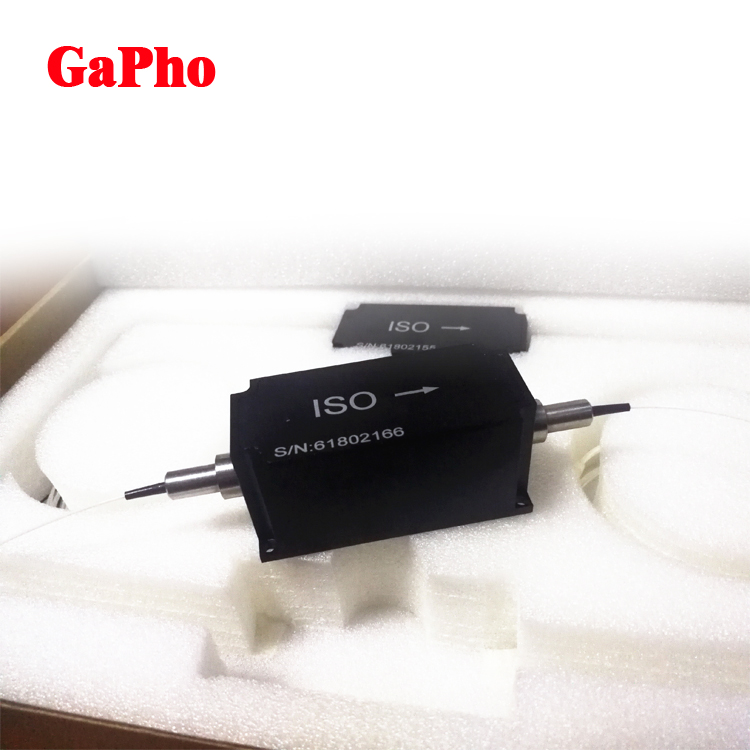

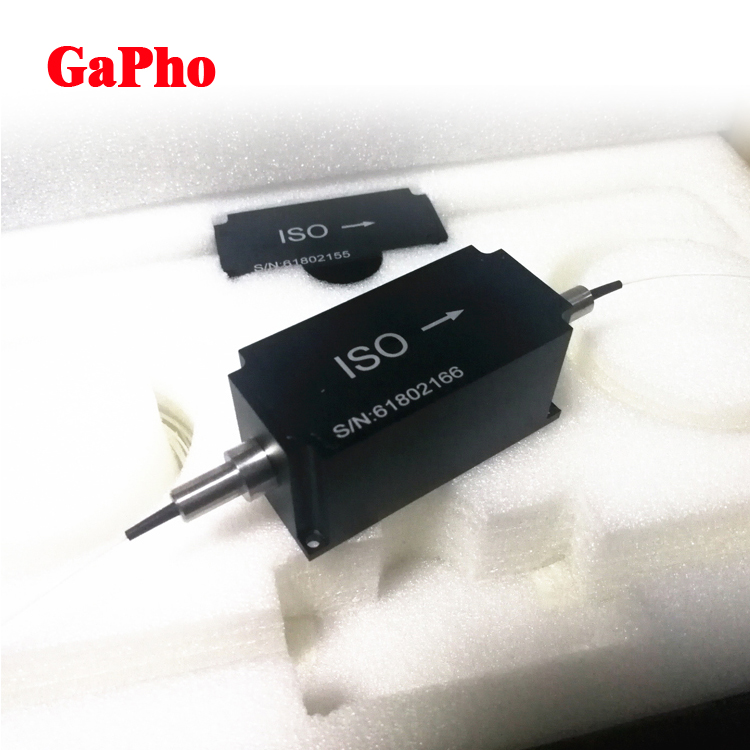

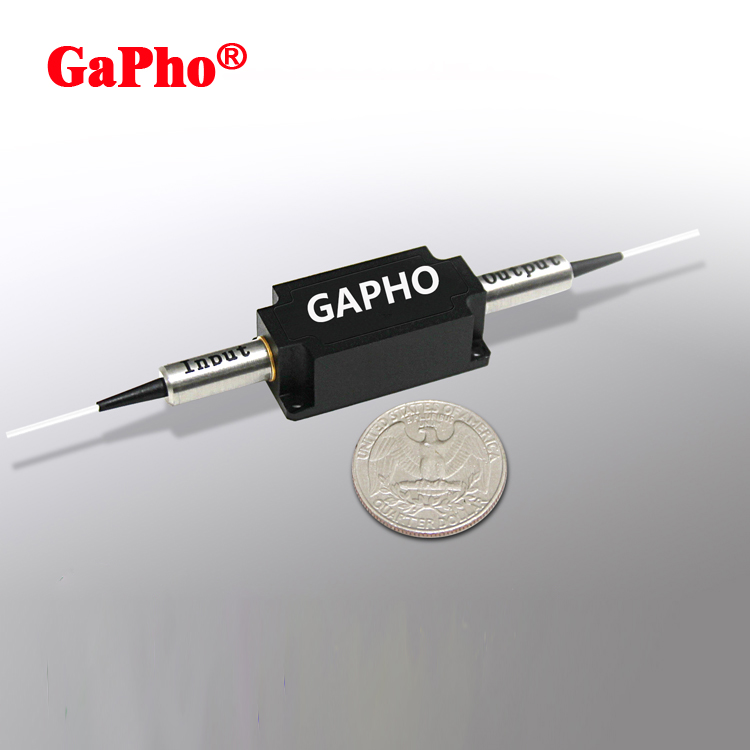

Polarization-Insensitive High-Power Isolator (1064 nm, up to 2W)
Low Insertion PM 980nm Dual stage Polarization-Insensitive Optical Isolator High Isolation
The Gapho optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability.
features
- Polarization-Insensitive
- Low Insertion Loss
- High Isolation and Return Loss
- High Reliability and Stability
Application
- Fiber Amplifier
- Fiber Laser
- Testing Instruments
- Mopa Fiber Laser
Specification
| Parameter | 980nm Isolator |
| Center wavelength (nm) | 980 |
| Bandwidth(nm) | ±10 |
| Peak isolation (dB) | 32 |
| Isolation at 23℃ (dB) | ≥25 |
| Insertion Loss at 23℃(dB) | ≤1.0 typ 0.6 |
| ER(dB) | Type 1 (Fast axis blocked) | ≥22 |
| Type 2 (Both of axis working) | ≥20 |
| Return loss (Input/output) (dB) | ≥50/50 |
| Power handling (mW) | ≤1000 |
| Fiber Type | PM 980 |
| Operating temperature (℃) | ~5 ~ +50 |
| Storage temperature (℃) | -20 ~ +75 |
| Package(mm) | 56X32x32 |
Package Dimensions:

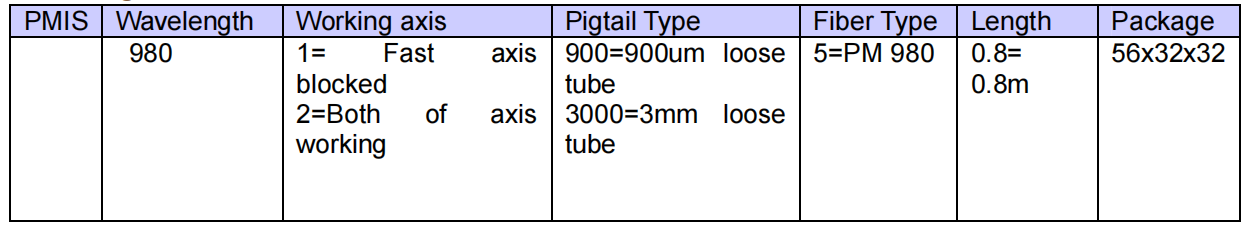

Ordering Information
other product
package&shipping
package:idividual box or accordig to customer's request
port:ShenZhen
