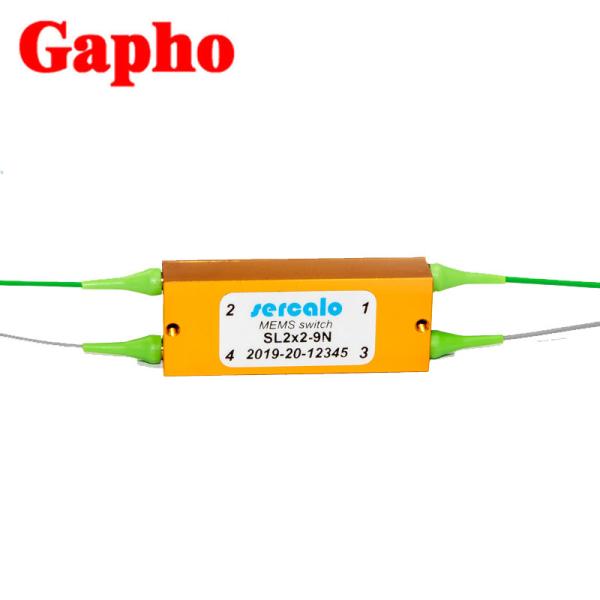

2x2 MEMS optical Switch fiber dia 250um or 900um wavelength 1310/1550 nm and other E MEMS2X2 Optical Switch.ppt..pptx
| Features: | Application |
| | |
| | |
- Intrinsic tolerance to ESD
| |
Description

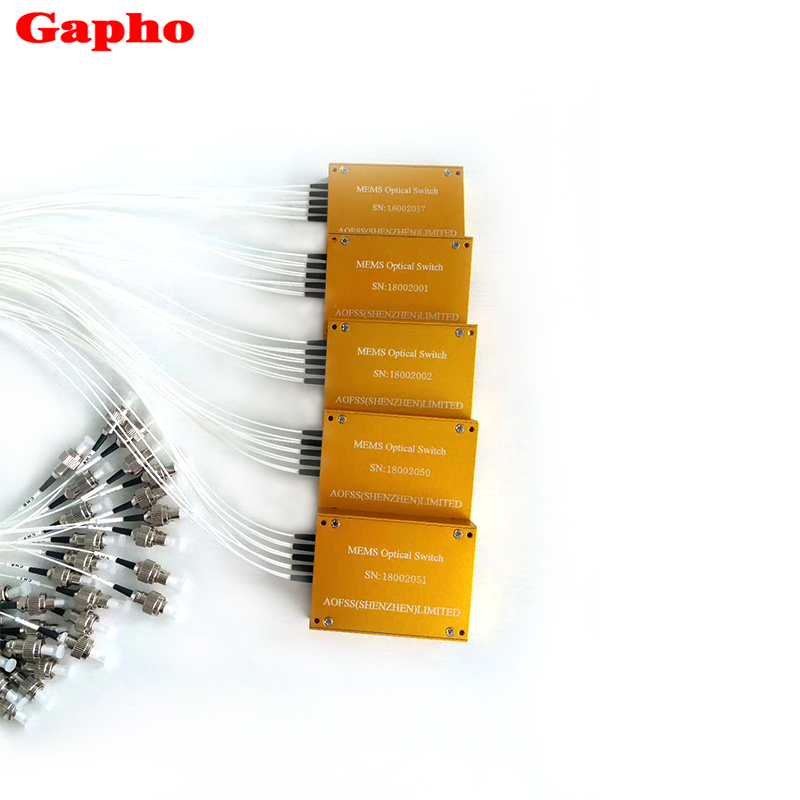

The MEMS Latch Series 1x8 Fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers. This is achieved using a patent pending MEMS configuration and activated via an electrical control signal. It uniquely features rugged thermal activated micro-mirror movements instead of rotation, and latches to preserve the selected optical path after the drive signal has been removed. This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.
Specifications:
| Parameters | | MSW-2x2 | | Wavelength Range | nm | 1260～1620 | | Testing Wavelength | nm | 1310/1490/1550/1625/1650 | | Insertion Loss | dB | Typ:0.7 ,Max:1.2 | | Return Loss | dB | ≥50 | | Crosstalk | dB | ≥50 | | PDL | dB | ≤0.10 | | WDL | dB | ≤0.25 | | TDL | dB | ≤0.20 | | Repeatability | dB | ≤±0.05 | | Repeatability Rate | Hz | 20 | | Lifetime | Cycle | ≥109 | | Switch Time | ms | ≤5 | | Transmission Power | mW | ≤500 | | Operation Temperature | ℃ | -5～+70 | | Storage Temperature | ℃ | -40～+85 | | Switching type | | Latching |
| | | |

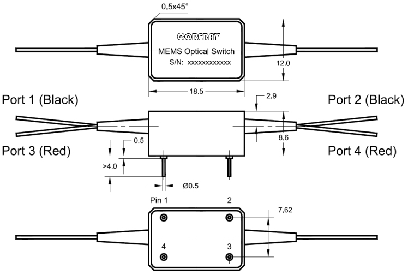

Dimensions
Electrical Driving Requirements
Ordering Information:MSW－1×8－A－B－C－D－E
| A | B | C | D | E |
| Mode | Wavelength | Fiber Diameter | Fiber Length | Connector |
| SM:9/125um M5: 50/125um M6: 62.5/125um | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm | 25:250um 90:900um | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
other products
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:When our company be established?
A: We started from year 2013
Q:What is your order quantity?
A: usually 1 piece, if you have detailed requirements, we can coordinate.
Q:Do you offer OEM services?
A: We accept OEM, ODM. Cable sizes and materials can be customized.
