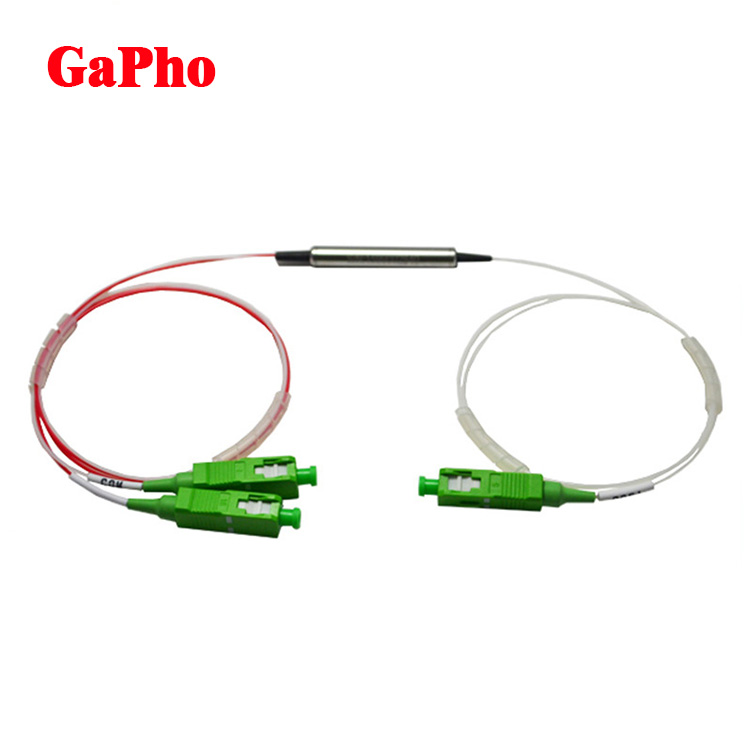

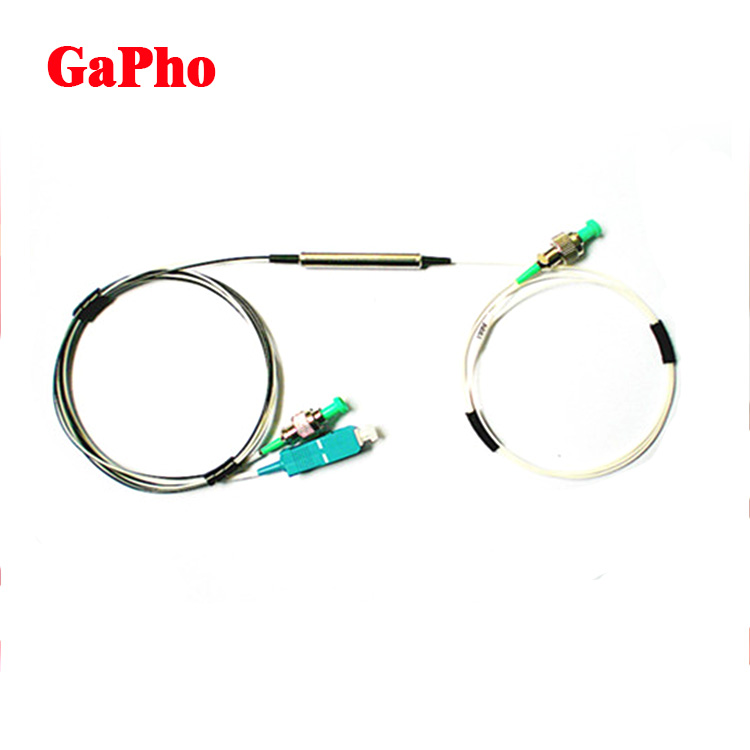

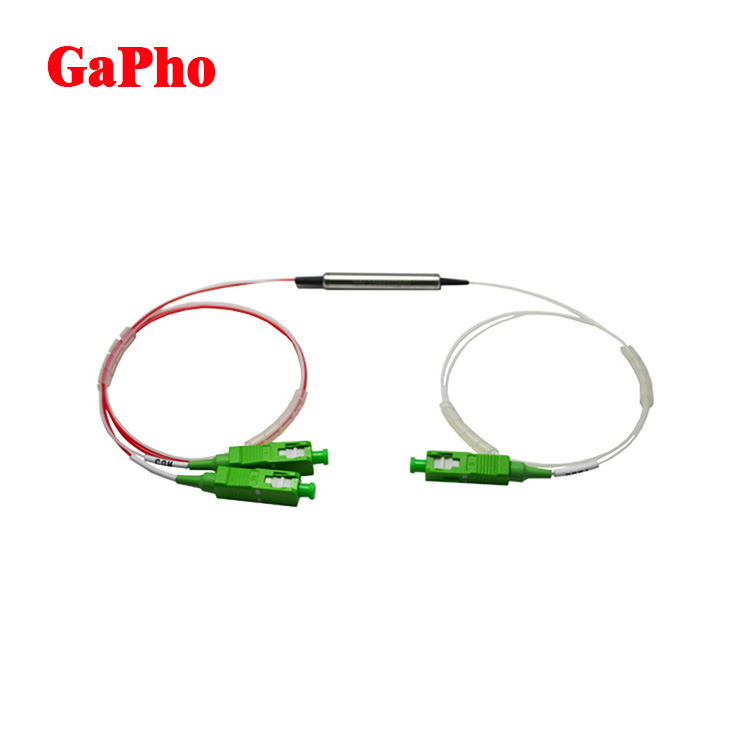

900 um loose tube C/ L Band Filter WDM FWDM Fiber Amplifier System Monitoring Fiber opticA C-L band filterWDM.docx
| Features |
| Low Insertion Loss High Isolation High Stability and reliability |
| Application |
| Fiber Amplifier System Monitoring Fiber optic Instrument Laboratory R & D |
Performance Specifications
| Type Parameter | C/L FWDM |
| Pass wavelength (nm) | 1570-1610 (or 1500-1564) |
| Reflection wavelength (nm) | 1500-1564 (or 1570-1610) |
| Pass insertion loss (dB) | ≤0.6 |
| Reflection insertion loss (dB) | ≤0.5 |
| Pass channel isolation (dB) | ≥30 |
| Reflection isolation (dB) | ≥12 |
| Channel flatness (dB) | ≤0.3 |
| Directivity (dB) | ≥55 |
| Return loss (dB) | ≥50 |
| PDL (dB) | ≤0.1 |
| Wavelength thermal stability (nm/℃) | ≤0.003 |
| Insertion loss thermal stability (dB/℃) | ≤0.005 |
| Power handling (mW) | ≤300 |
| Operating temperature (℃) | 0 ~ +65 |
| Storage temperature (℃) | -40 ~ +85 |
| Dimensions (mm) | φ5.5×L34 |

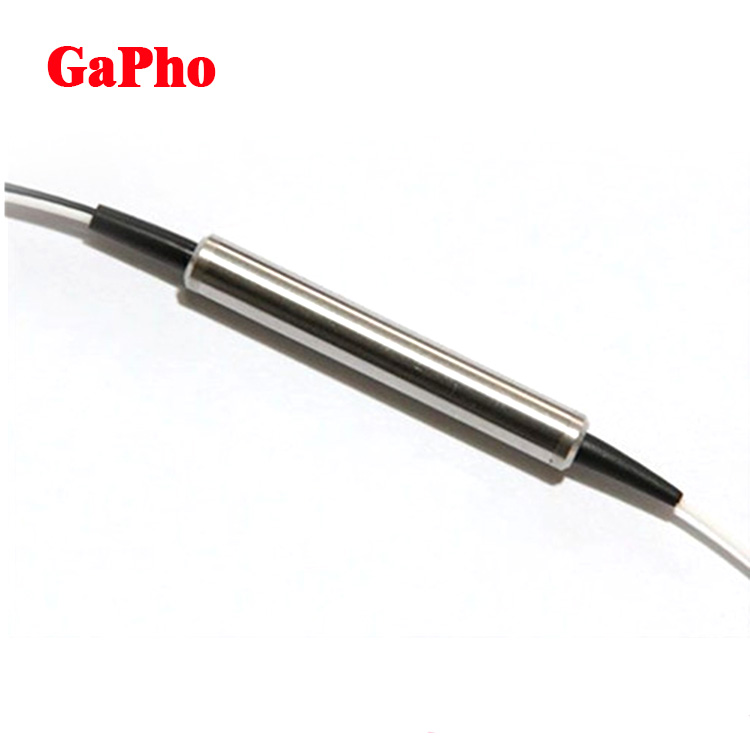

Package dimension
ordering information
| FWDM | Wavelength | Pigtail Type | Fiber Type | Length | Connector |
| | 1500-1564T/1570-1610R | 250=250um bare | 1=SMF-28e | 1= 1m | NE=None |
| 1570-1610T/1500-1564R | fiber | | | FA=FC/APC |
| | 900=900um loose | | | FC=FC/UPC |
| | tube | | | SA=SC/APC |
| | 3000=3mm loose | | | SC=SC/UPC |
| | tube | | | LC=LC/UPC |
| | | | | LA=LC/APC |
| | | | | XX=Other |
company prolife
We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.
- Packaging & Shipping
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What certificate we have?
A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
Q: What is your delivery date?
A: The delivery date is approximately 3-5days, depending on the order quantity.
.
